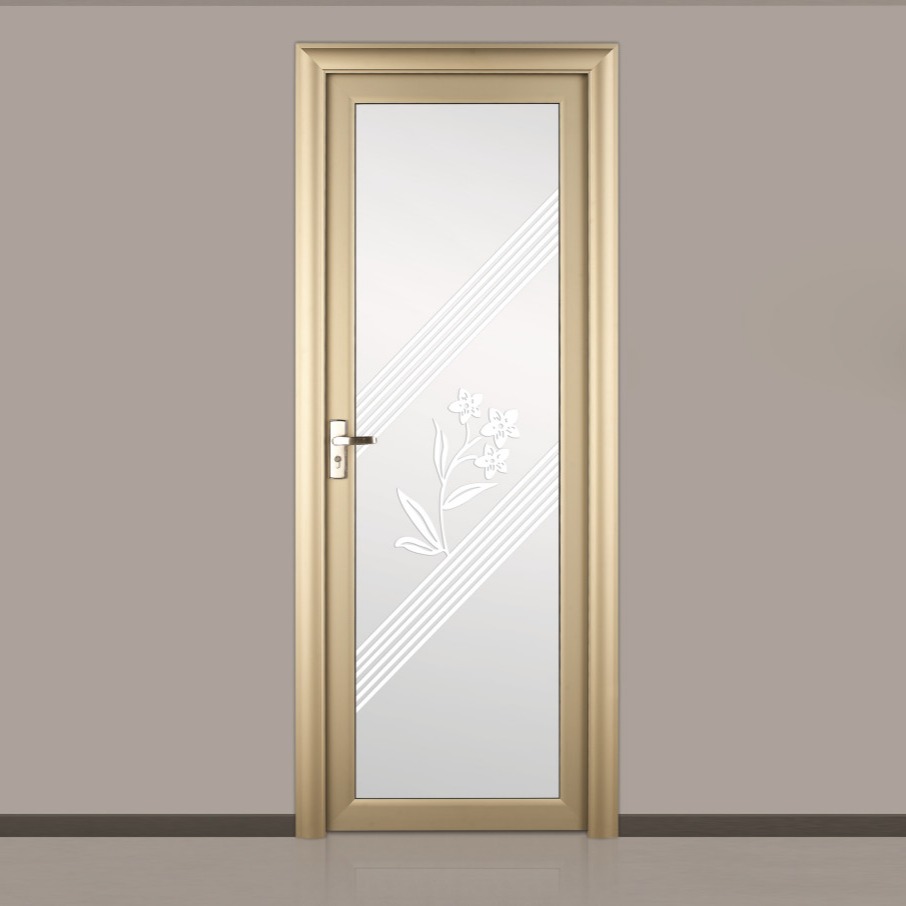

6063 Aluminium Casement Doors Double Hollow Glass Grill With Retro Gold Handle

Product Description

6063 Aluminium Casement Doors Double Hollow Glass Grill With Retro Gold Handle

Aluminium Casement Doors Double Hollow Glass Grill With Retro Gold Handle

Frame Description

Interior: Non Finger-Jointed Pine or finger-jointed core with non finger-jointed Pine veneer; optional non finger-jointed Douglas Fir or finger-jointed core with non finger-jointed Douglas Fir veneer; optional non finger-jointed White Oak or finger-jointed with non finger-jointed Oak veneer; non finger-jointed Cherry or finger-jointed core with Cherry veneer; non finger-jointed Mahogany or finger-jointed core with non finger-jointed Mahogany veneer; non finger-jointed Vertical Grain Douglas Fir or finger-jointed with non finger-jointed Vertical Grain Douglas Fir veneer.

Kiln-dried to moisture content no greater than twelve (12) percent at the time of fabrication

Water repellant preservative treated in accordance with WDMA I.S.4.

Frame exterior aluminum clad with 0.050 inch (1.3mm) thick extruded aluminum

Frame thickness: 1 3/16” (30mm)

Frame depth for full frame units have an overall 5 21/32” jamb (144mm). 4 9/16” (116mm) jamb depth from the nailing fin plane to the interior face of the frame for new construction

Frame depth for replacement frame units have an overall 3 ¼” jamb (83mm) for replacement application and 2 3/16” (56mm) jamb depth from the nailing fin plane to the interior face of the frame for new construction

Frame bevel: Standard is no bevel, optional available are 8 degree and 14 degree bevel (replacement frame only)

Glazing

Select quality complying with ASTM C 1036. Insulating glass SIGMA/IGCC certified to performance level CBA when tested in accordance with ASTM E 2190.

Glazing method: Insulating glass

Glazing seal: Silicone bedding at interior and exterior

Insulating glass will be altitude adjusted with capillary tubes for higher elevations. Argon gas is not available for elevations that require capillary tubes.

Glass Type: Clear, Bronze, Gray, Reflective Bronze, Tempered, Obscure, Laminated, Low E2 with or without Argon, Low E3 with or without Argon, Low E1 with or without Argon, Low E2/ERS Argon or air, Low E3/ERS Argon or air,

Tripane glass(TG): Tripane Low E1 with Argon, Tripane Low E2 Argon, Tripane Low E3 Argon, Tripane Low E1 Krypton/Argon, Tripane Low E2 Krypton/Argon, Tripane Low E3 Krypton/Argon. This glass type is dependent on sash thickness and availability. Consult ADM or OMS for availability.

Hardwares

Locks: Multi-point sequential concealed locking system in the jamb opposite the hinge side for casement units. Lock handles are removable, non-handed and are available in the same finishes as the handles. Standard tie bars, cams and keepers – steel coated with E-Gard . Keeper features a roller for reduce average lock force and does not easily disengage with the cam even under severe loading. Stainless steel packages are available for coastal application.

Handles: Standard operating handle is a folding handle, zinc painted with the standard folding cover being molded plastic.

Colors: standard is Satin Taupe (painted), White (painted), Bronze (painted), Matte Black (painted), Satin Chrome (plated), Satin Nickel (plated), Oil Rubbed Bronze (plated), Brass (plated), Antique Brass (plated)

Hinges: Butt hinges (does not allow for wash mode feature)

Colors: White, Beige, Black, and Brushed Stainless Steel
