Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Dolphin |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | pearl cotton+paper box,6 meters long |
| Delivery Time: | 15-21 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Material: | Luminum Alloy 6063,6063A,6060,6061 | Surface Treatment: | Powder Painted |
|---|---|---|---|
| Application: | Balcony Railing | Color: | Silver |
| Length: | 5.8-6.0M | Thickness: | 0.8mm~5.0mm |
| Grade: | Aluminum Alloy 6063 | ||
| High Light: | 1.2mm Aluminum Extrusion Profile,1.4mm Aluminum Extrusion Profile,1.2mm Aluminum Extrusion Profile |
||
Product Description
1.2 / 1.4 Thinckness Wood Grain Aluminium Door Profiles High Formability
Temper: T4, T5, T6 ,T66
Deep process: Milling, Drilling, Bending,Cutting.
Alloy :6063,6061,6005 or according to customer’ s choice
Material:Aluminum
Color:clear, satin, bronze, black, golden, silver, other multicolor
Description:
The surface treatment :
1) Mill Finished
2) Anodized: Silver, champagne, light bronze, dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated: Silver, champagne, bronze, black, light bronze, dark bronze.
4) Powder spray coated Normal color, special color. Thickness: 60 to 80 um.
5) Fluorocarbon powder spray coated /PVDF Paint: Normal color, special color.
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer: Imported paper, domestic paper.
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Fabrication: 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ: 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Applications:
Sliding aluminum windows, also called aluminum sliding windows, are widely used as sliding closet windows, sliding cabinet windows, sliding bathroom windows, exterior sliding windows and sliding aluminum folding windows, and so on. They have beautiful appearance and smooth surface, and are wind proofing, water proofing, and anti-erosion.
Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa |
≥ 8%
|
♦ Corporate Introduction :
Foshan Dolphin Metal Products Co., LTD is located in Foshan Guangdong. We have been engaged in foreign trade for more than 10 years. The company has two factories in China and one in Vietnam. We provide various high-standing T5&T6 6000 series aluminum profile for doors&windows, conservatory, cabinet&wardrobe, building material and etc. With professional R&D, OEM/ODM are available. Our monthly output reaches more than 8000 Tons, so our customers come from different countries, such as Thailand, Malaysia, Singapore, Vietnam, Burma and etc.
Moreover, the company has a professional and responsible team to help our customers. All processes are visualized during thr order. Before loading, we have quality inspectors to check the products. After the order, the aftersales staff will ask for feedback. We have always been adhering to the concept that customers are friends and teachers. Every feedback is a opportunity to learn and grow. With the development of these years, Dolphin Co., LTD will be further upgraded and expanded.
♦ Please tell us the information below, and we will give the best suggestion to you!
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
Welcome to visit our company !
Choose us & contact us !

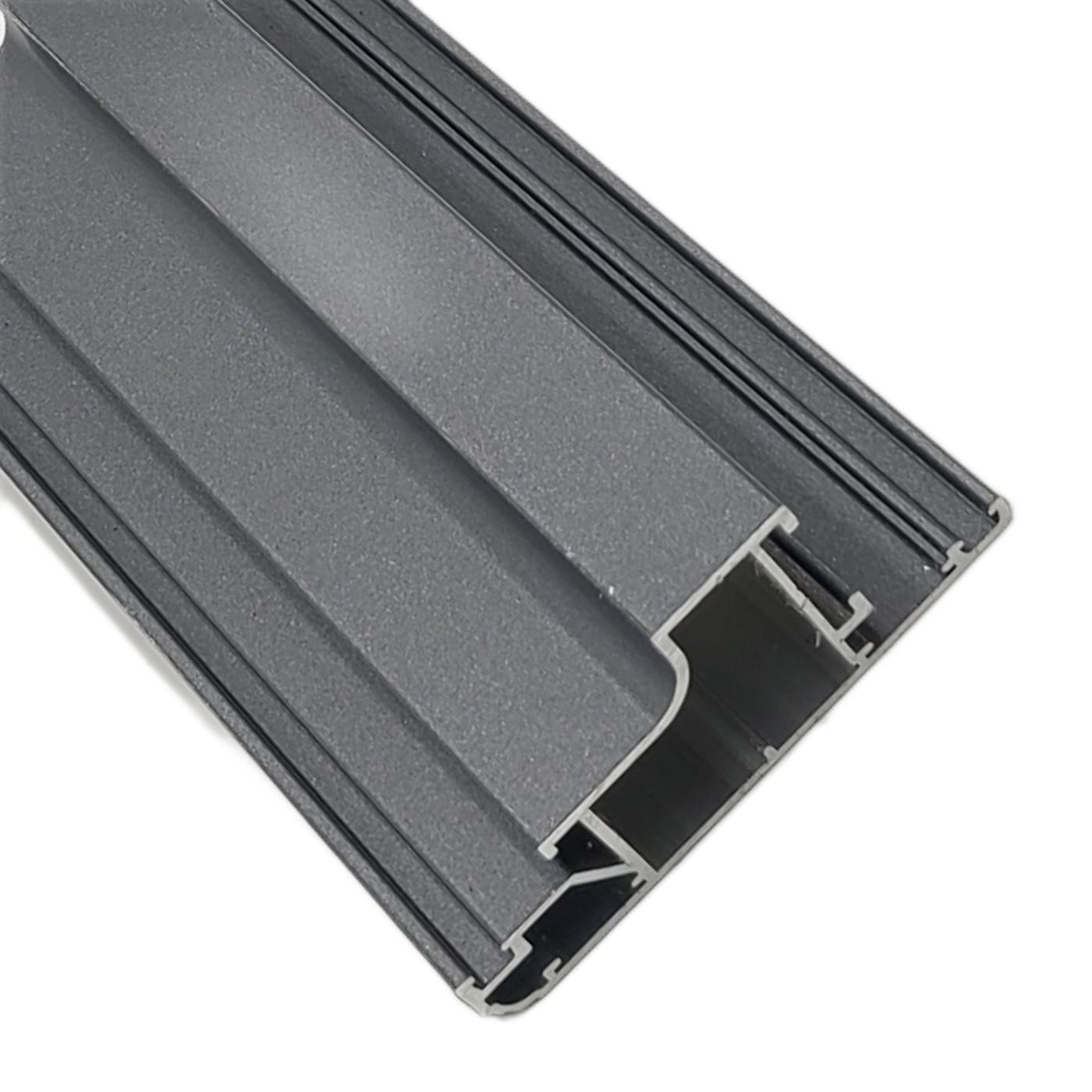

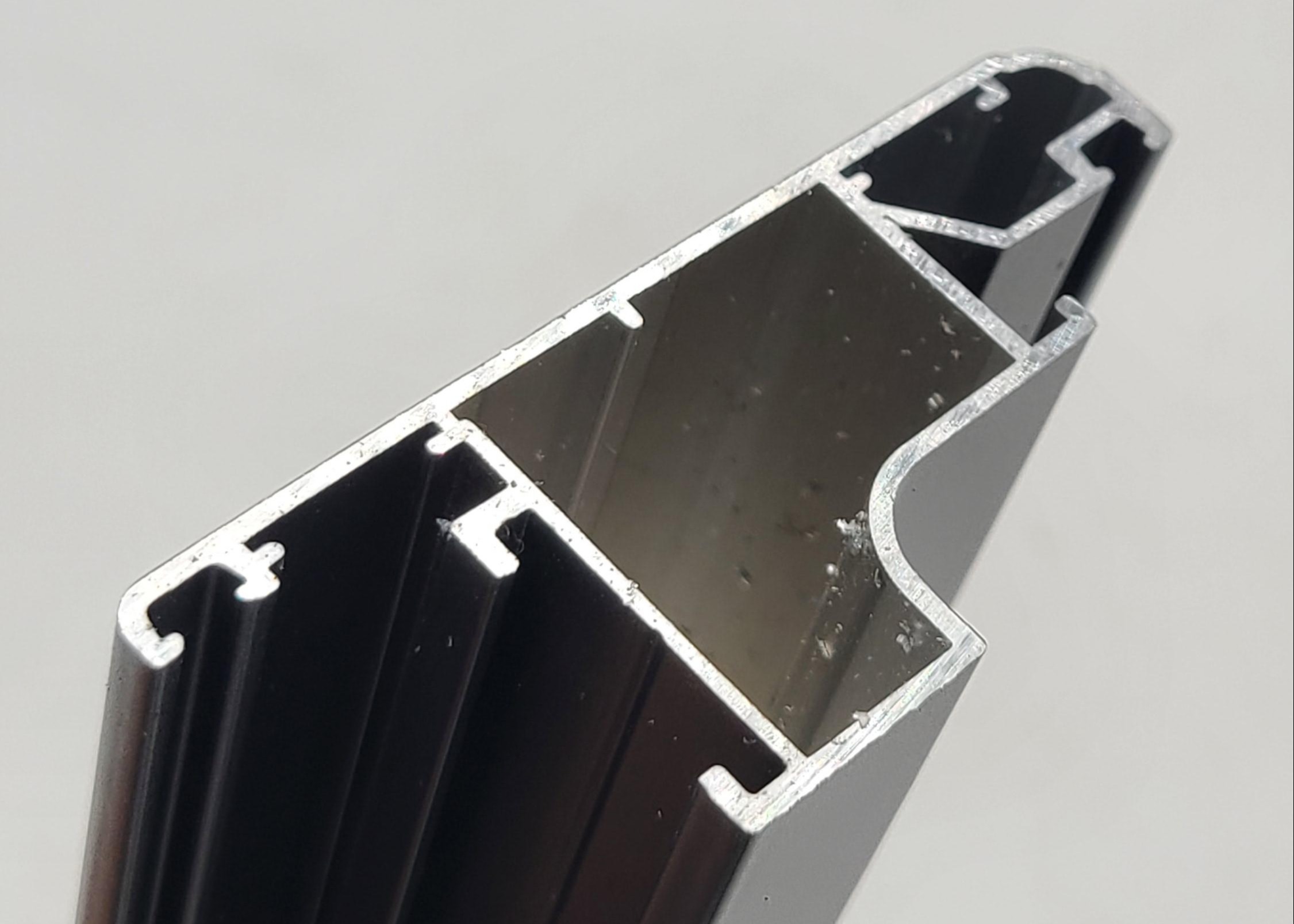

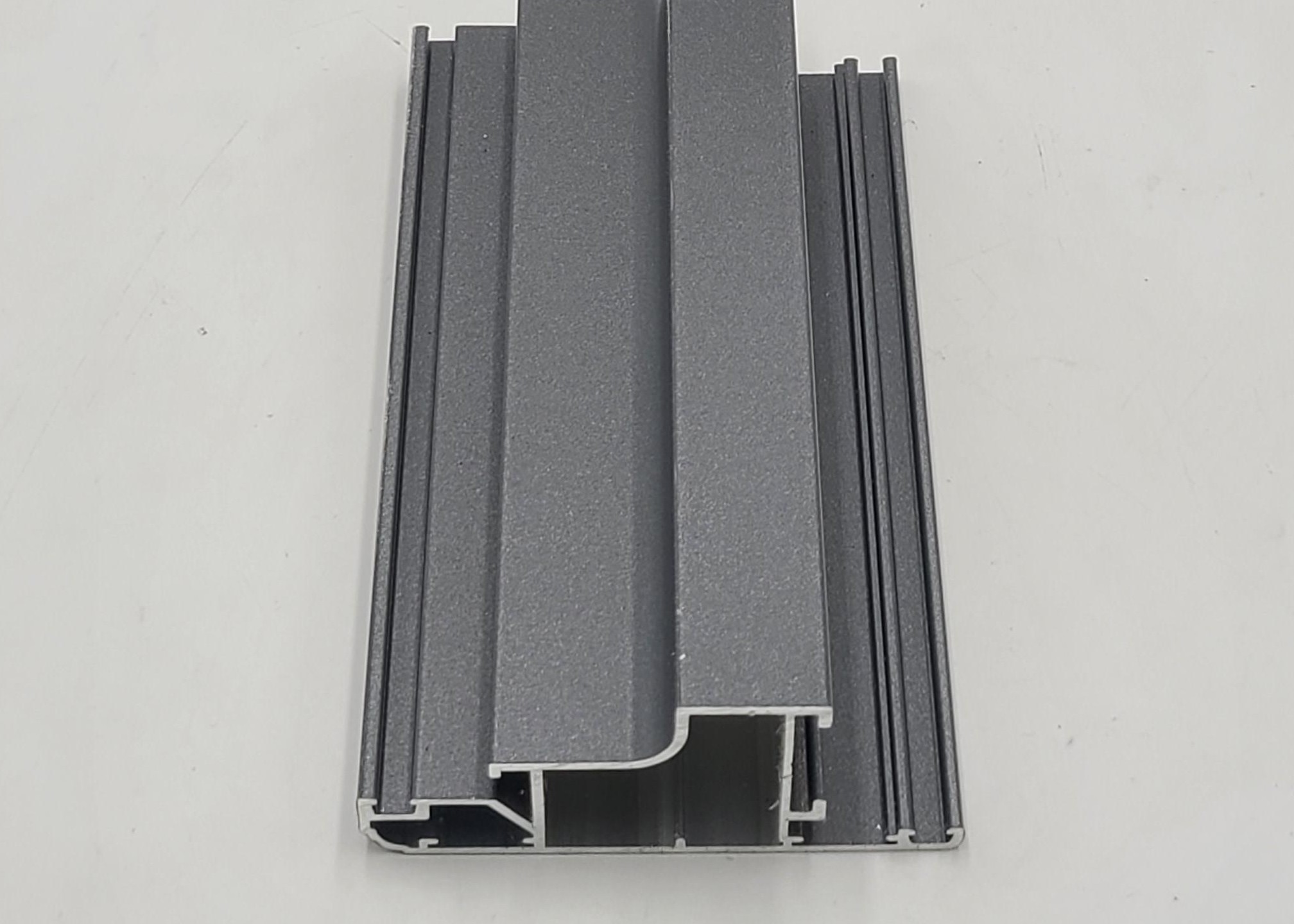

♦ Photos :
