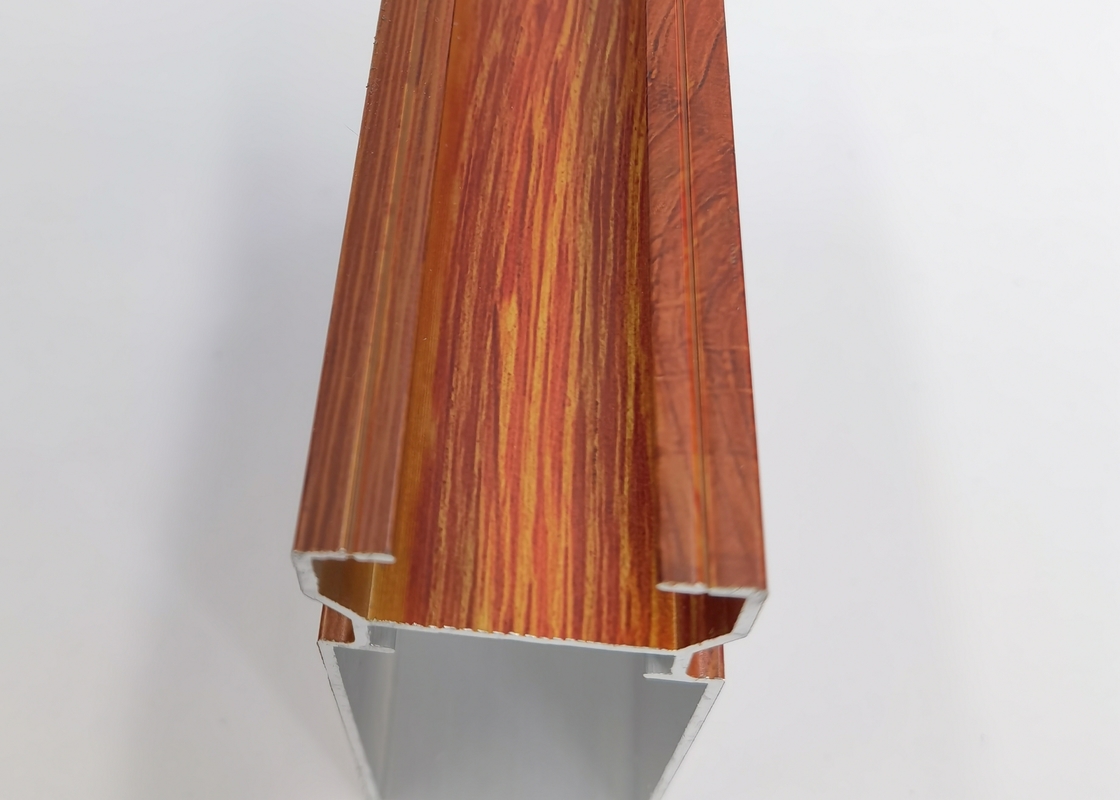

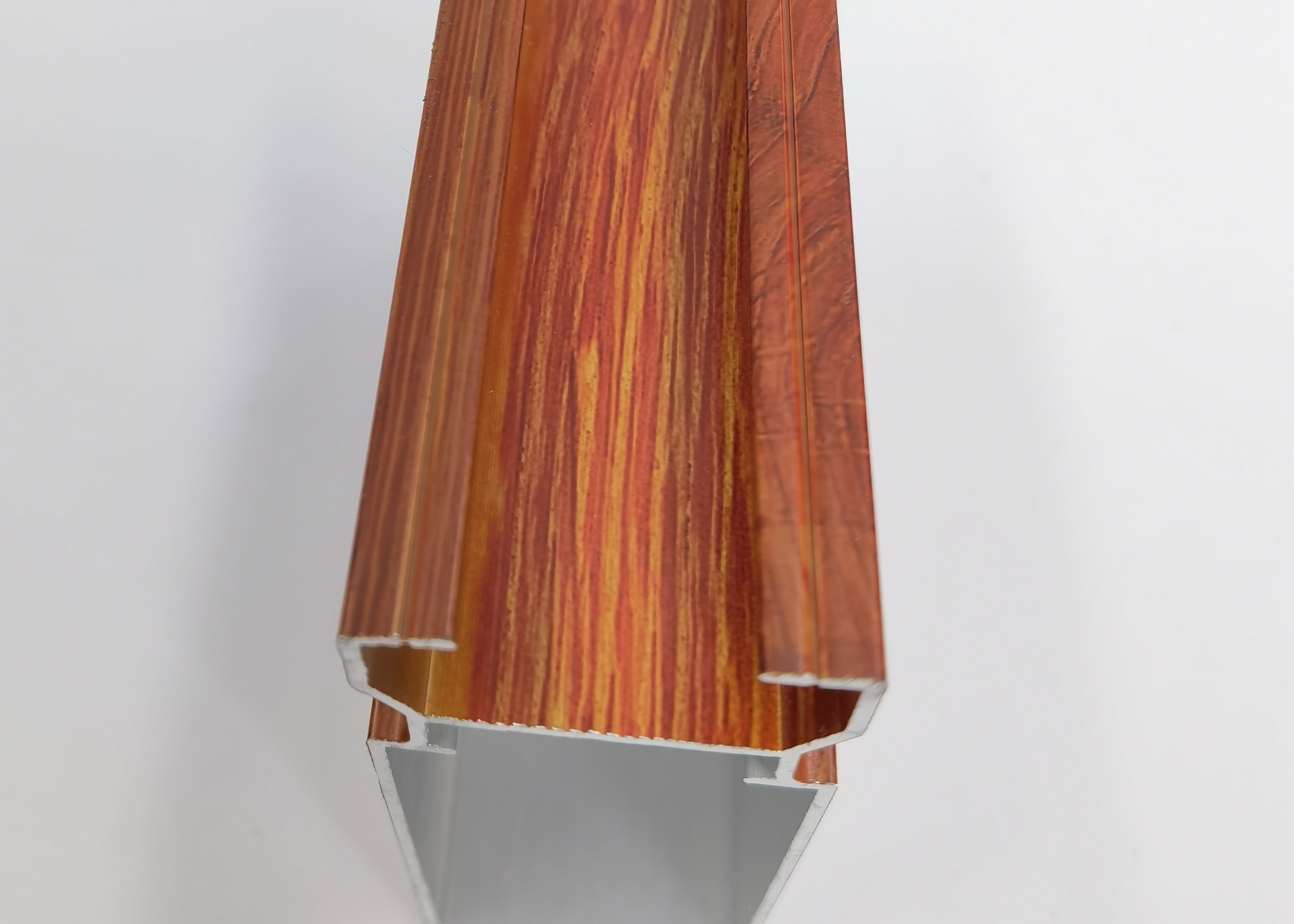

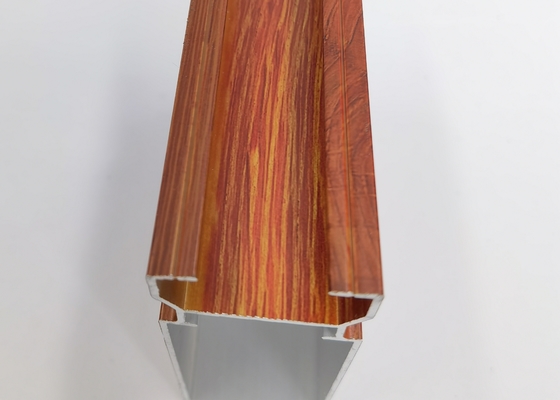

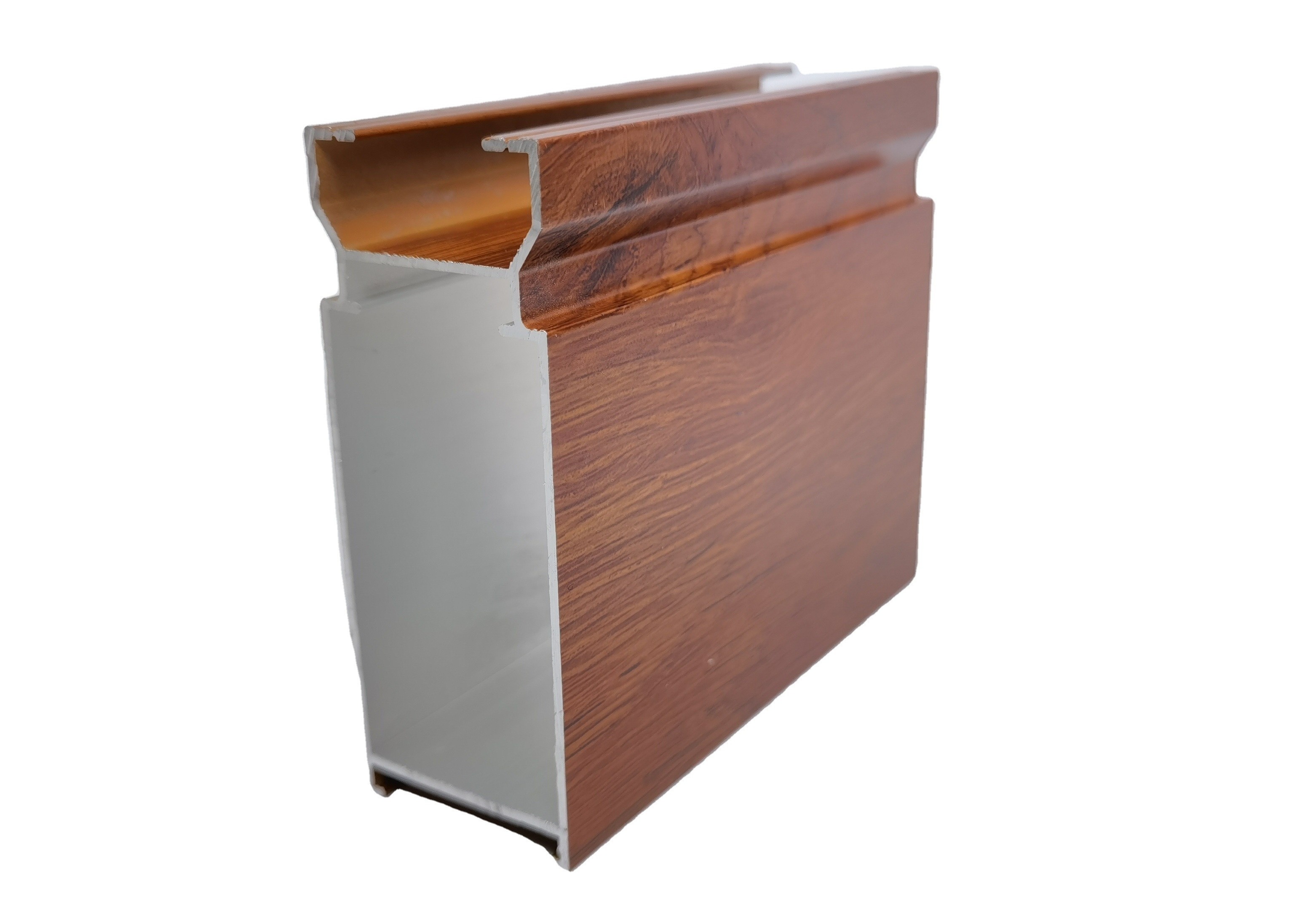

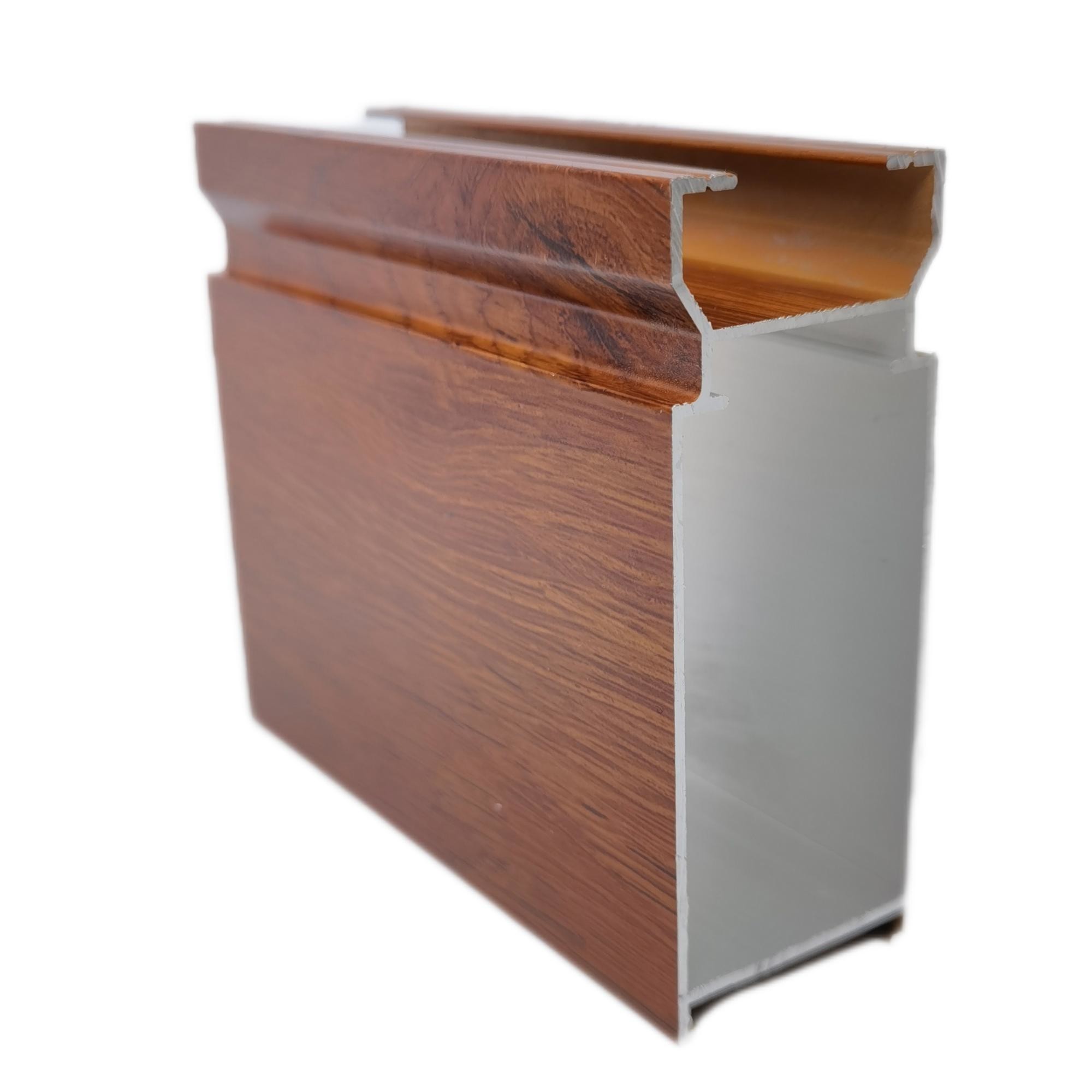

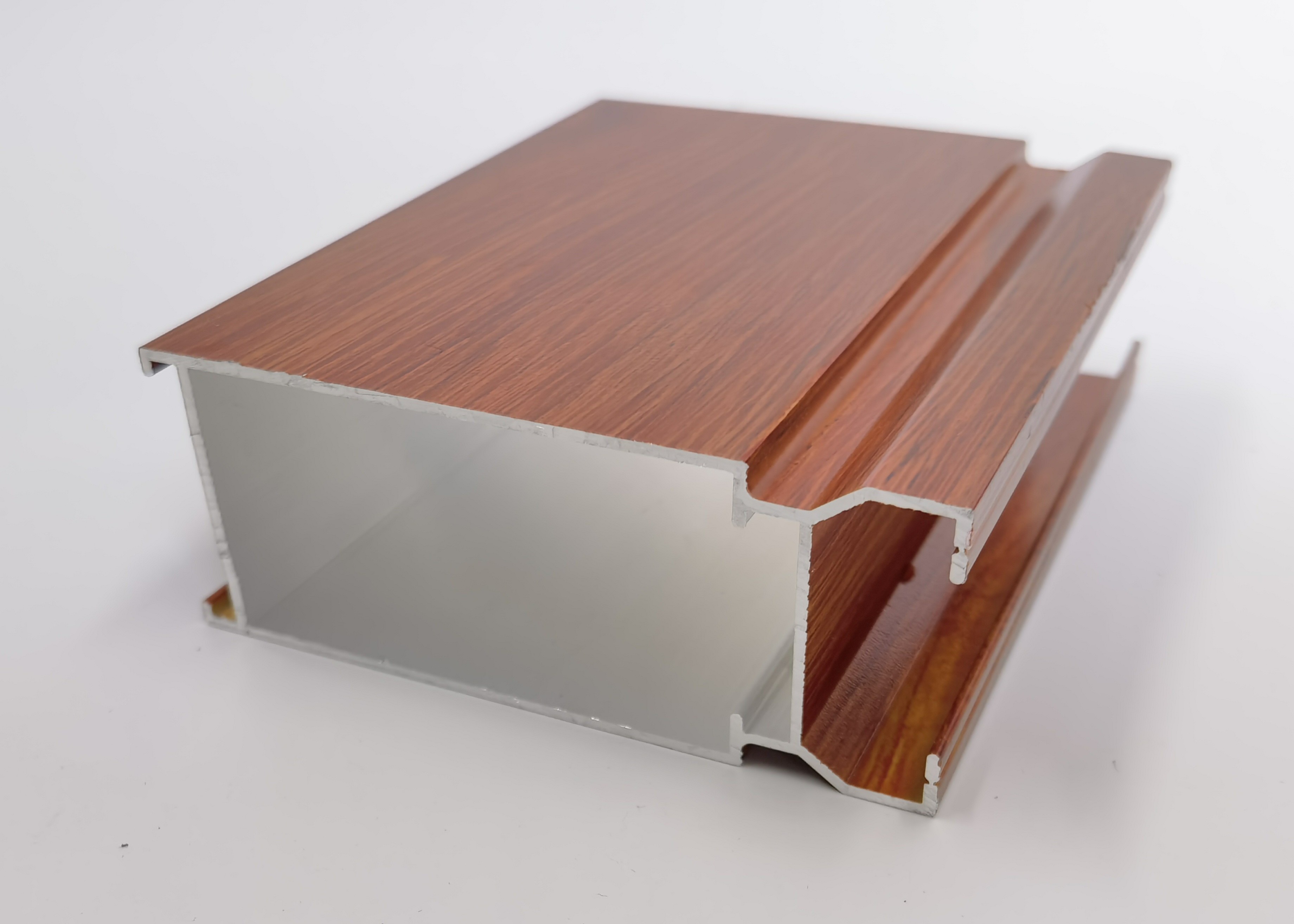

1.2mm Aluminium Sliding Window Profile Wooden Grain Marble Texture Adhesion

Product Description

1.2mm Aluminium Sliding Window Profile Wooden Grain Marble Texture Adhesion

Aluminium Decorative Profiles Wooden Grain Marble Texture Adhesion Non Toxic / Odor

1. Company Introduction

1. 20 years' experience and advanced equipment

2. Customize: We can manufacture according to your size and shape of such aluminum profile;

3. Strong production capacity - 28 extrusion lines, 50,000TONS/Year

4. One Stop Service Specialized in mould, extrusion, anodizing, powder coating, wood grain and Processing;

5. Shortest Delivery , competitive prices and excellent service

2. Introduction:

The wood grain transfer profile is based on the powder spraying or electrophoretic coating, according to the principle of high temperature sublimation thermal penetration, by heating and pressing, the wood pattern on the transfer paper or the transfer film is quickly transferred and penetrated to the profiles which have been sprayed or electrophoretic. The production of wood grain profile clear texture, strong sense of three-dimensional, better reflect the natural feeling of wood grain, is an ideal energy saving and environmental protection material instead of traditional wood.

Wood grain has strong adhesion to aluminum, which is non-toxic, odorless and easy to clean. Product lines clear and realistic, strong sense of three-dimensional, decorative effect is good, there is a return to nature, return to nature's visual effect. The coating on the surface of the aluminum profile can not volatilize or oxidize in the air without any pollution to the environment. The dirt deposited on the spray surface can be restored to its original luster and appearance after being washed.

3. Technology

(1) select the substrate that has been sprayed or electrophoretic.

(2) use wood grain heat transfer paper to wrap the transferred substrate, and use the heat resistant adhesive tape to fix the interface of the paper, so as to prevent grained heat transfer paper from loosening. (Note: the front side of wood pattern heat transfer paper should be pasted with the transferred substrate.

(3)then set up the high temperature resistant and well sealed plastic plastic bag on the base material which has been wrapped by the wood grain heat transfer paper, and then vacuum from the two ends of the plastic bag until the plastic bag is fully and effectively cling to the base material. The negative pressure of vacuum should be adjusted according to the characteristics of the transferred substrate and the negative pressure that the plastic bag can bear, usually between 0.3 and 0.8Mpa. (Note: the purpose of using plastic bags is to force the wood grain hot transfer paper to be fully and effectively pressed on the base material by the negative pressure.)

(4) the base material that has been wrapped is sent to the oven to bake. The height of the baking temperature and the length of the time should be adjusted according to the characteristics of the substrate, the depth of the transfer texture and the specific performance of the oven. The temperature of the transfer is usually 160~180 centigrade and the time is 5~8 minutes.

(5) remove the transferred substrate from the oven and pull out the plastic bag from one end of the transferred substrate (Note: this plastic bag can be reused), tearing down the hot transfer paper, and cleaning the surface.

Please tell us the information below, and we will give the best suggestion to you!
1. Where you intend to use the aluminium profiles?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
