Product Details:
|
|
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | wisdom |
| Model Number: | XLFD108-5 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | Negotiation |
| Price: | Negotiation |
| Packaging Details: | pearl cotton+paper box,6 meters long |
| Delivery Time: | 15-21 work days |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 500000 Kilogram/Kilograms per Week |
|
Detail Information |
|||
| Grade: | 6061/6063 Series | Temper: | T3&T4&T5&T6 |
|---|---|---|---|
| Application: | HOTEL WINDOW | Shape: | All Shape Choose |
| Alloy Or Not: | Is Alloy | Tolerance: | ±0.2% |
| Processing Service: | Bending, Decoiling, Welding, Punching, Cutting | Performance: | OH-0014 |
| High Light: | T3 Extruded Aluminum Window Frame,T6 Extruded Aluminum Window Frame,T6 aluminum window frame extrusions |
||
Product Description

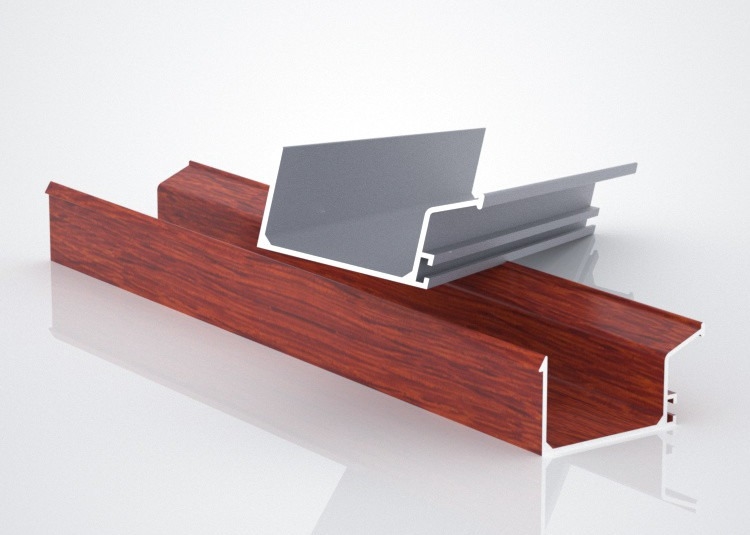

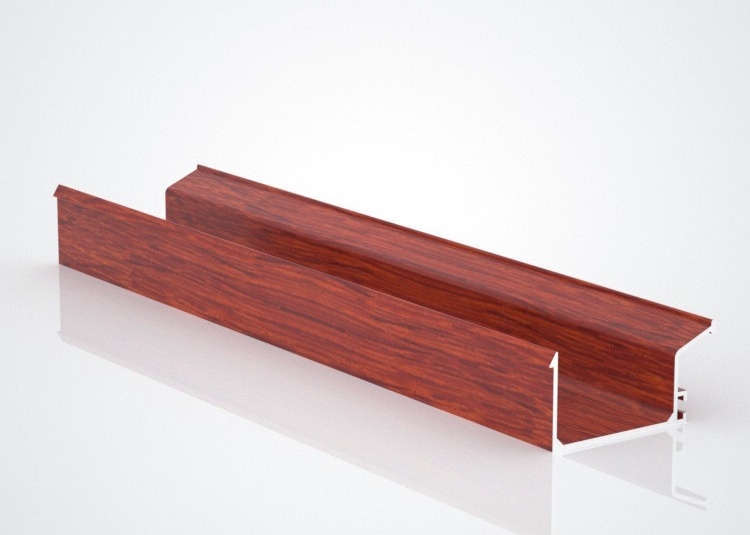

Wooden Pattern T3 Extruded Aluminum Window Frame Sound Insulation
Aluminium Window Profiles Wooden Pattern Sound Insulation Aluminum Window Yarn Integration Profile
1. Alloy :6063,6061,6005 or according to customer's choice
2. Material:Aluminum
3. Suface Treatment: Mill Finished,Anodized ,Electrophoretic coated,Powder spray coated,Fluorocarbon powder spray coated /PVDF Paint, Drawbench,Steel polished,Wood grain coated /Wooden transfer .
4. Deep process: Milling, Drilling, Bending,Cutting.
Description:
The surface treatment :
1) Mill Finished
2) Anodized : Silver ,champagne ,light bronze ,dark bronze, black, light titanium, dark titanium. Usually the thickness of the film is 10 um.
3) Electrophoretic coated : Silver , champagne ,bronze ,black ,light bronze ,dark bronze .
4) Powder spray coated :Normal color ,special color. Thickness : 60 to 80 um .
5) Fluorocarbon powder spray coated /PVDF Paint : Normal color ,special color .
6) Drawbench
7) Steel polished
8) Wood grain coated /Wooden transfer : Imported paper, domestic paper .
Technical requirements
1) Standard: GB/75237-2004, Q/320281/PDWD-2008
2) Certification: ISO9001
3) OEM service offered
4) Material: Alloy 6063, 6061 or according to customer’ s choice
Temper: T3, T4, T5, T6
5) Fabrication : 1. Milling; 2. Drilling; 3. Bending; 4. Cutting...
6) Window Accessories: Using ECO friendly EPDM leather strap that would not age for a long time with a long service life.
7) MOQ : 1 ton. Usually 12 tons for a 20 feet container; 24 tons for a 40 feet container.
8) FOB Port: Shanghai Port
Applications:
Used in casement doors and windows for living room, dinner room, bathroom, office room, meeting room, restaurant, hotel, etc.
Specifications:
1. Primary Technical Data
1) Chemical composition
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Impurity | Al |
| 6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.9 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | 0.15 | 0.8-1.2 | 0.04-0.35 | 0.25 | 0.15 | 0.15 | Rest |
| 6060 | 0.3-0.6 | 0.1-0.3 | 0.1 | 0.1 | 0.35-0.6 | - | 0.15 | 0.1 | 0.15 | Rest |
| 6005 | 0.6-0.9 | 0.35 | 0.1 | 0.1 | 0.40-0.6 | 0.1 | 0.1 | 0.1 | 0.15 | Rest |
2) Mechanical property
| Alloy | Temper | Tensile strength | Yield strength | Elongation |
| 6063 | T5 | ≥ 160Mpa | ≥ 110Mpa | ≥ 8% |
| T6 | ≥ 205Mpa | ≥ 180Mpa | ≥ 8% | |
| 6061 | T6 | ≥ 265Mpa | ≥ 245Mpa | ≥ 8% |
design and support.
2) Aluminium profiles deeply processing:cutting,punching, drilling, milling, and fabricating.
3) High Quality system, strictly inspection during production and whole inspection before package.
4) Good performance, product warranty for 15 years.
Corporate Introdiction:
Foshan Dolphin Metal Products Co., LTD is located in Foshan Guangdong. We have been engaged in foreign trade for more than 10 years. The company has two factories in China and one in Vietnam. We provide various high-standing T5&T6 6000 series aluminum profile for doors&windows, conservatory, cabinet&wardrobe, building material and etc. With professional R&D, OEM/ODM are available. Our monthly output reaches more than 8000 Tons, so our customers come from different countries, such as Thailand, Malaysia, Singapore, Vietnam, Burma and etc.
Moreover, the company has a professional and responsible team to help our customers. All processes are visualized during thr order. Before loading, we have quality inspectors to check the products. After the order, the aftersales staff will ask for feedback. We have always been
adhering to the concept that customers are friends and teachers. Every feedback is a opportunity to learn and grow. With the development of these years, Dolphin Co., LTD will be further upgraded and expanded.
Welcome to visit our company !
Choose us & contact us !
